BAC-5801 | Discontinued Controller, for Direct Replacement Only; see also BAC-5901
OVERVIEW | Controller: General, BACnet AAC, 8x8, Clock

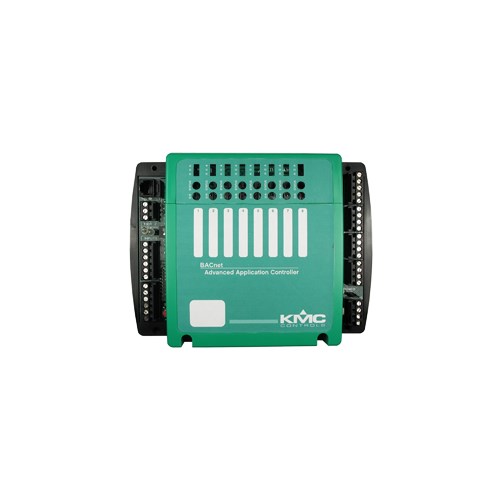

The BAC–5801 and BAC-5802 are native BACnet, fully programmable controllers designed for general purpose applications. Use these versatile controllers in stand-alone environments or networked to other BACnet devices. As part of a complete facilities management system, the BAC–5801 and BAC-5802 provide precise monitoring and control of connected points. The BAC-5801 and BAC-5802 are listed with the 9th edition of UL 864 (UUKL) for smoke control equipment. See the publications BACnet Smoke Control Manual and KMC Listed Smoke Control Devices and Support Documents Cross-Reference in the Documents section. Highlights include:
- BACnet MS/TP compliant
- Automatically assigns the MAC address and the device instance
- Controls room temperature, humidity, fans, monitors refrigeration, lighting, and other building automation functions.
- Tested and listed by the BACnet Testing Laboratory
Advanced Application Controller
APPLICATION GUIDE, 4-20 mA Wiring for Controllers (Updated: 2019-10-03) [Rev. C]APPLICATION GUIDE, Avoiding and Troubleshooting Ground Loops (Updated: 2021-02-22) [Rev. B]APPLICATION NOTE, BACnet Scheduling Tips for KMC BACnet Controllers (Updated: 2019-05-14)APPLICATION NOTE, Planning BACnet Networks (AN0404A) (Updated: 2009-08-31) [Rev. B]
- Data Sheets
BAC-5801/5802 IO Guide (Updated: 2019-05-14)BACnet Smoke Control (UUKL) Manual (Updated: 2019-05-14)HPO-0070/0071 Installation Guide (Updated: 2019-05-14)INSTALLATION GUIDE, HPO-6700 Series Output Override Boards (Updated: 2023-01-04) [Rev. L]INSTALLATION_GUIDE_InstallationInstructionsForFMSTPautomaticMACaddressing Requirements: For BAC-5800 and BAC-7000 series only.
- Product Cross-References
- Selection Guides
TROUBLESHOOTING GUIDE, Diagnosing a BACnet MS/TP Network with a Multimeter (Updated: 2018-05-05) [Rev. A]
