BAC-7401C | Discontinued Controller, for Direct Replacement Only; see also BAC-9301
Controller: HPU, BACnet AAC, Clock
OVERVIEW | Controller: HPU, BACnet AAC, Clock

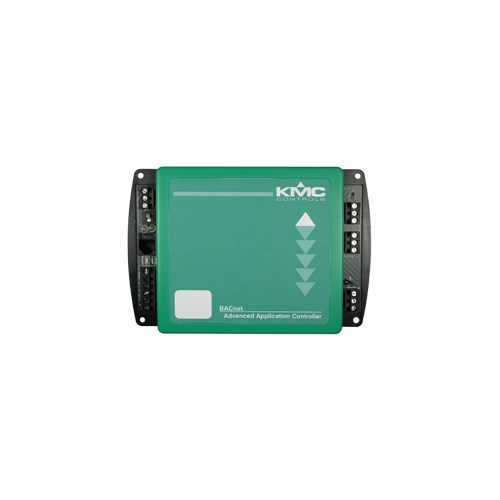

The BAC-7401 and BAC-7401C are native BACnet, fully programmable, controllers designed for heat pump unit applications. Use these versatile controllers in stand-alone environments or networked to other BACnet devices. As part of a complete facilities management system, the BAC-7401 and 7401C provide precise monitoring and control of connected points.
For AHU applications, see the BAC-7301 series. For RTU applications, see the BAC-7302 series. For FCU applications, see the BAC-7303 series.
Highlights of the BAC-7401/7401C include:
- BACnet MS/TP compliant
- Automatically assigns the MAC address and the device instance
- Supplied with programming sequences for heat pump units
- Controls compressor, fan, reversing valve and optional auxiliary heating
- Tested and listed by the BACnet Testing Laboratory
READ LESS
READ MORE
Specifications
Application | HPU |
---|---|
BACnet Profile | Advanced Application Controller |
Brand | KMC Controls |
Connectivity | MS/TP |
Triac Outputs | 4 |
Universal Inputs | 4 |
