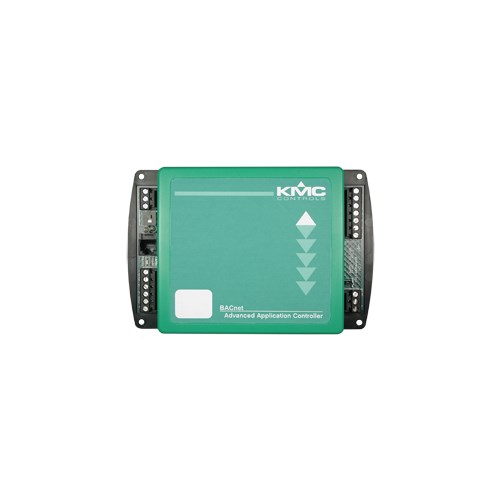

BAC-7301 | Discontinued Controller, for Direct Replacement Only; see also BAC-9301
OVERVIEW | Controller: AHU, BACnet AAC
The BAC-7301 and BAC-7301C are native BACnet, fully programmable controllers designed for small air handler units (AHU). Use these versatile controllers in stand-alone environments or networked to other BACnet devices. As part of a complete facilities management system, the BAC-7301 and BAC-7301C provide precise monitoring and control of connected points.
For RTU applications, see the BAC-7302 series. For FCU applications, see the BAC-7303 series. For HPU applications, see the BAC-7401 series.
Highlights of the BAC-7301/7301C include:
- BACnet MS/TP compliant
- Automatically assigns the MAC address and the device instance
- Supplied with programming sequences for small air handler unit
- Controls room temperature, humidity, fans, monitors refrigeration, lighting, and other building automation functions.
- Tested and listed by the BACnet Testing Laboratory
Advanced Application Controller
APPLICATION GUIDE, 4-20 mA Wiring for Controllers (Updated: 2019-10-03) [Rev. C]APPLICATION GUIDE, Avoiding and Troubleshooting Ground Loops (Updated: 2021-02-22) [Rev. B]APPLICATION NOTE, BACnet Scheduling Tips for KMC BACnet Controllers (Updated: 2019-05-14)APPLICATION NOTE, Planning BACnet Networks (AN0404A) (Updated: 2009-08-31) [Rev. B]
- Data Sheets
BAC-7301/7301C IO Guide (Updated: 2019-05-14)INSTALLATION_GUIDE_InstallationInstructionsForFMSTPautomaticMACaddressing Requirements: For BAC-5800 and BAC-7000 series only.
- Product Cross-References
- Selection Guides
TROUBLESHOOTING GUIDE, Diagnosing a BACnet MS/TP Network with a Multimeter (Updated: 2018-05-05) [Rev. A]
