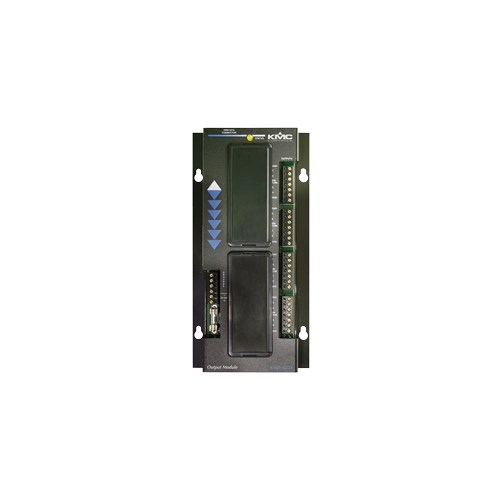

KMD-5221 | Expansion: LanController Output Card, KMDigital, 16 UO (discontinued soon)
OVERVIEW | Expansion: LanController Output Card, KMDigital, 16 UO
NOTE: This product will be discontinued soon and is available while supplies last. Contact customer service with questions regarding quantity before placing an order.
The KMD-5221 Output Module processes control outputs from the KMD-5210 LAN Controller and sends the outputs to the connected output devices. The module can handle 16 individual outputs and provides 12–bit digital-to-analog conversion on each output. All outputs are universal and may be programmed as either analog or digital. Each output can supply up to 50 mA at 12 VDC (800 mA max. per module) as a 0–10 VDC analog or 0/12 VDC for digital outputs. When larger outputs are required, or some type of isolation is required between the output device and the module, optional output override boards are available in a number of different formats (see Accessories). Application The KMD-5221 Output Module is designed to accept control outputs from the KMD-5210 LAN Controller and send these signals to up to 16 output devices.
- Data Sheets
INSTALLATION GUIDE KMD-5221 [Rev. C]INSTALLATION GUIDE, HPO-6700 Series Output Override Boards (Updated: 2023-01-04) [Rev. L]
