HLO-1050 | Accessory: Linkage Kit, Airflow Measurement System
OVERVIEW | Accessory: Linkage Kit, Inclinometer On Vertical Axis Blade, AFMS
The HLO-1050 Linkage Kit is designed for installing the inclinometer of a KMC Conquest Airflow Measurement System (AFMS) onto units with vertical-axis damper blades. The linkages transfer the damper motion to a surface with a horizontal axis (the inclinometer crankarm), on which the AFMS’s inclinometer can then be mounted.

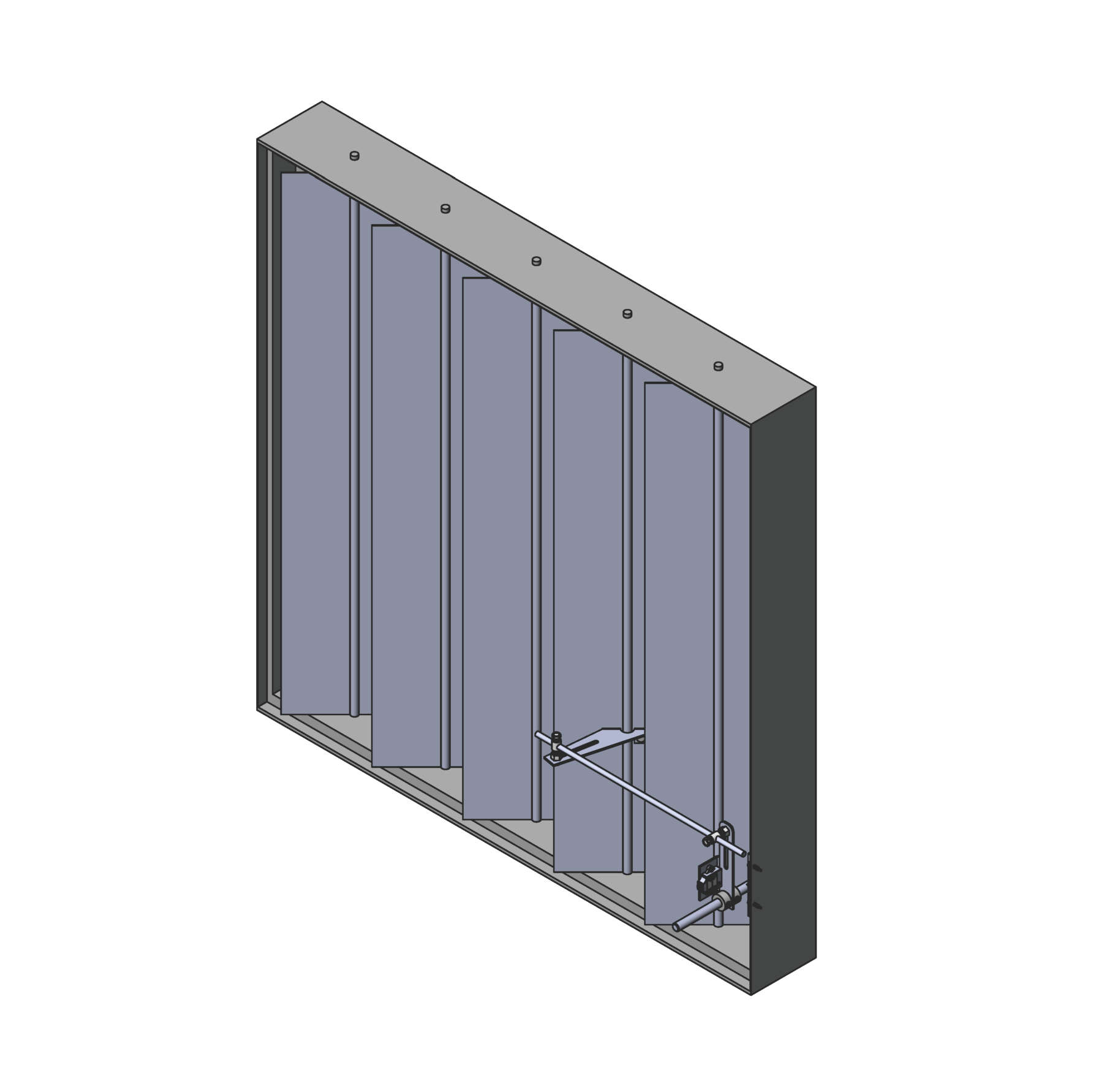

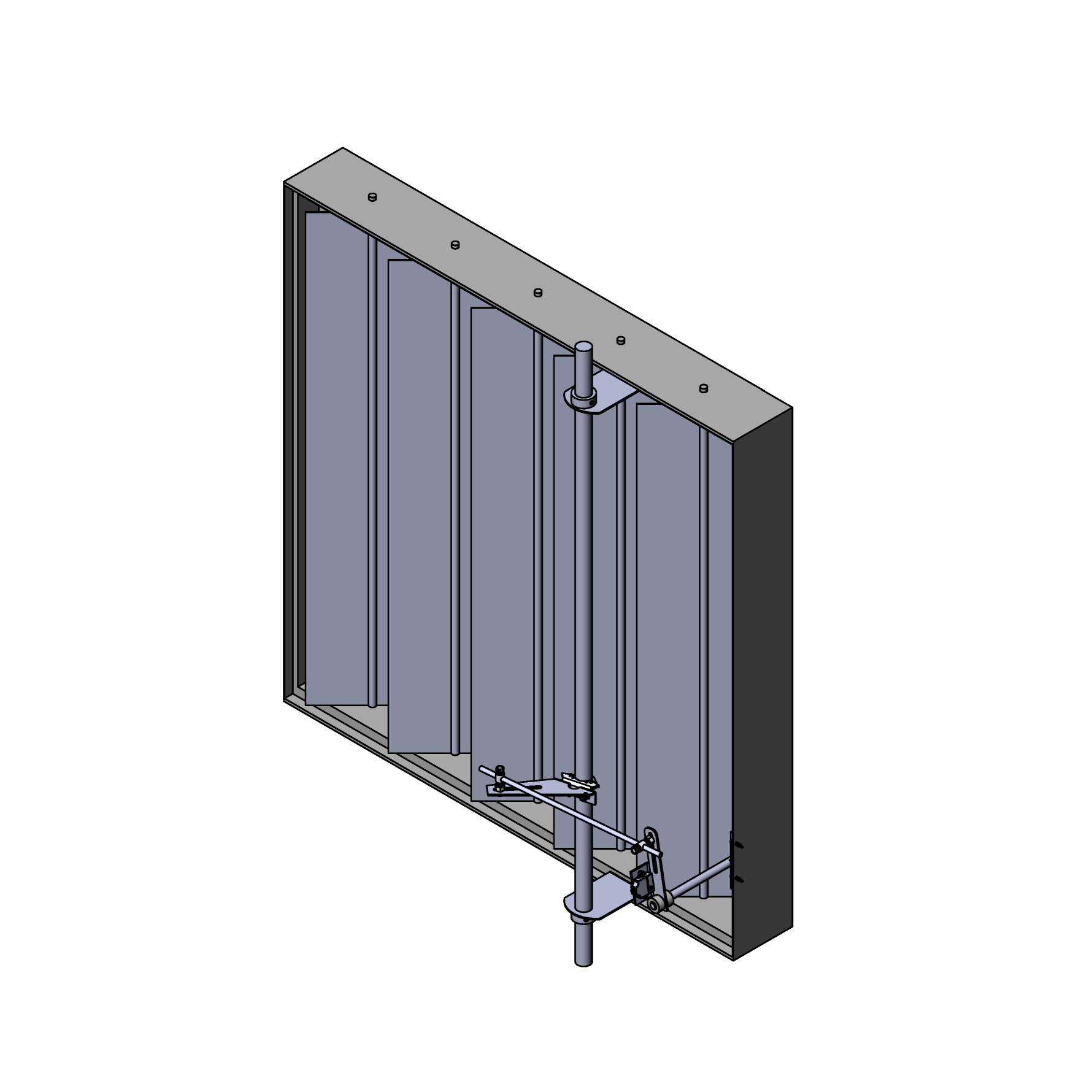

The kit’s damper blade crankarm can be mounted on a damper blade or on a jackshaft using the included jackshaft coupler and V-bolt.

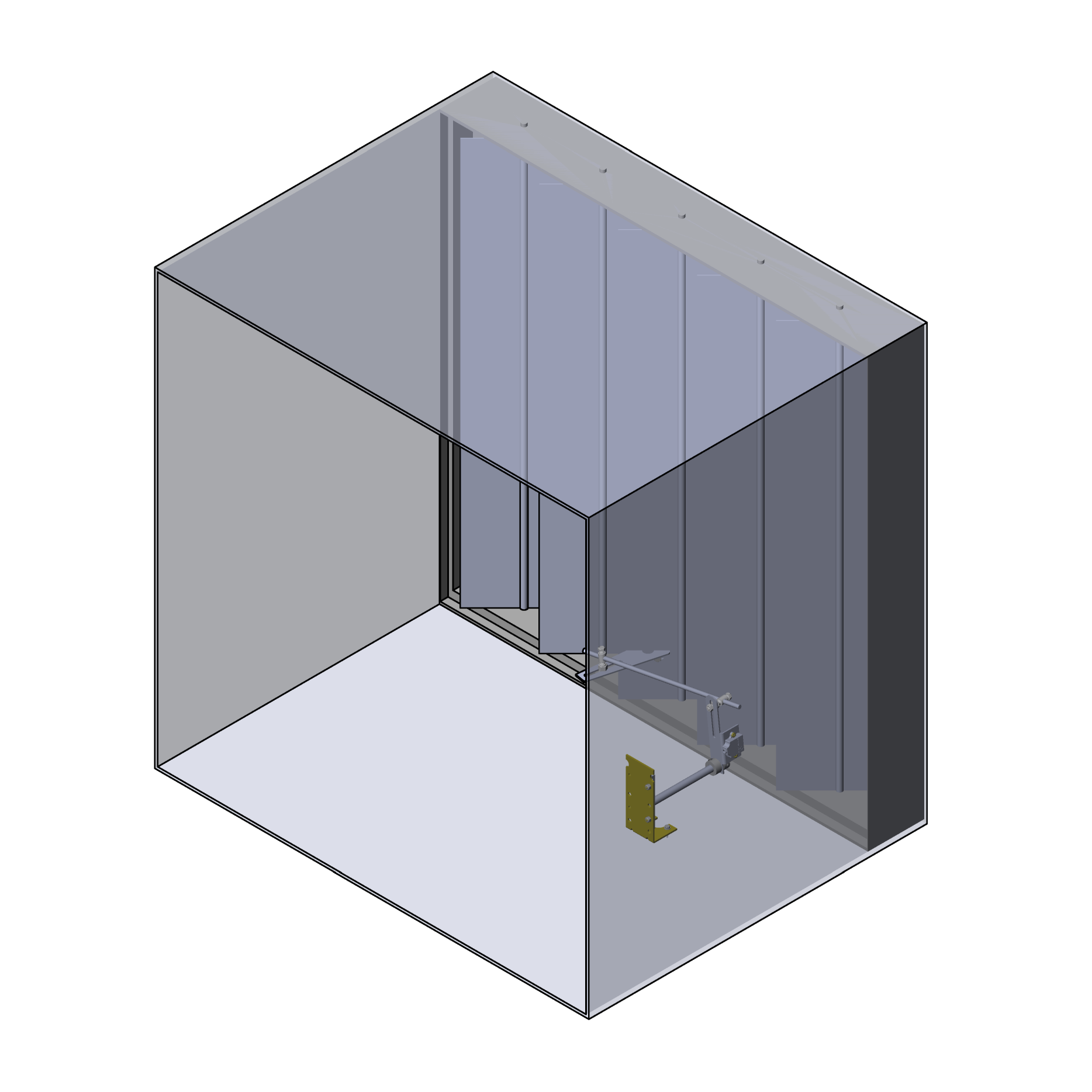

In situations where the kit’s axle mount shaft cannot be mounted on a unit’s damper frame (such as when mounting in a duct), a VTD-0903 right-angle bracket (sold separately) can be used.
See the KMC Conquest AFMS Installation Guide for installation of other AFMS components.
INSTALLATION GUIDE, HLO-1050 Linkage Kit (Updated: 2023-04-14) [Rev. B]INSTALLATION GUIDE, KMC Conquest Airflow Measurement System (Updated: 2023-05-08) [Rev. B]
