A/AN-BP | ACI: 10K T3, Bullet Probe
Sign in with a qualified account to view pricing or
learn how to buy KMC products.
OVERVIEW | ACI: 10K T3, Bullet Probe

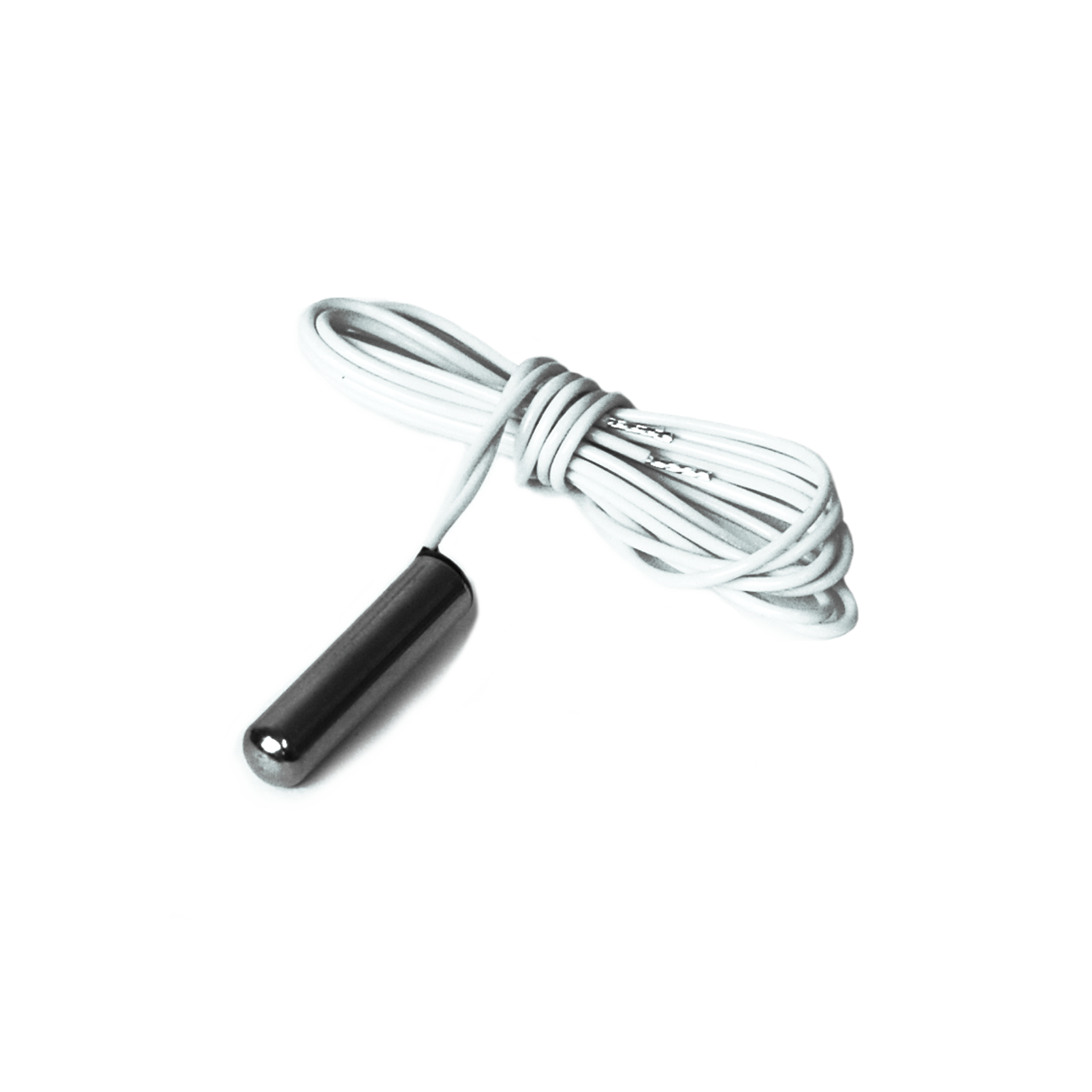

The ACI Thermistor Bullet Probe Series features a one-inch stainless steel probe with two, 24-inch 22 AWG Etched Teflon colored lead wires to differentiate NTC sensor types. The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response times using our high quality, thermally conductive epoxy. The bullet style sensor is designed to monitor air temperatures and should not be fully submerged in water. This series can be ordered with different wire options and NIST certificates.
Applications include Roof Top Units, Air Handlers, Discharge Air/Supply/Return/Mixed Air Duct Temperature, and Remote Temperature Sensing.
For convenience in installing a complete building automation system, KMC Controls sells to our customers a large variety of ACI (Automation Components, Inc.) devices.
For full ACI product descriptions and specifications go to workaci.com and enter the part number in the Search field at the top of the page.
Specifications
Brand | ACI |
---|---|
Sensor Type | Temperature |
