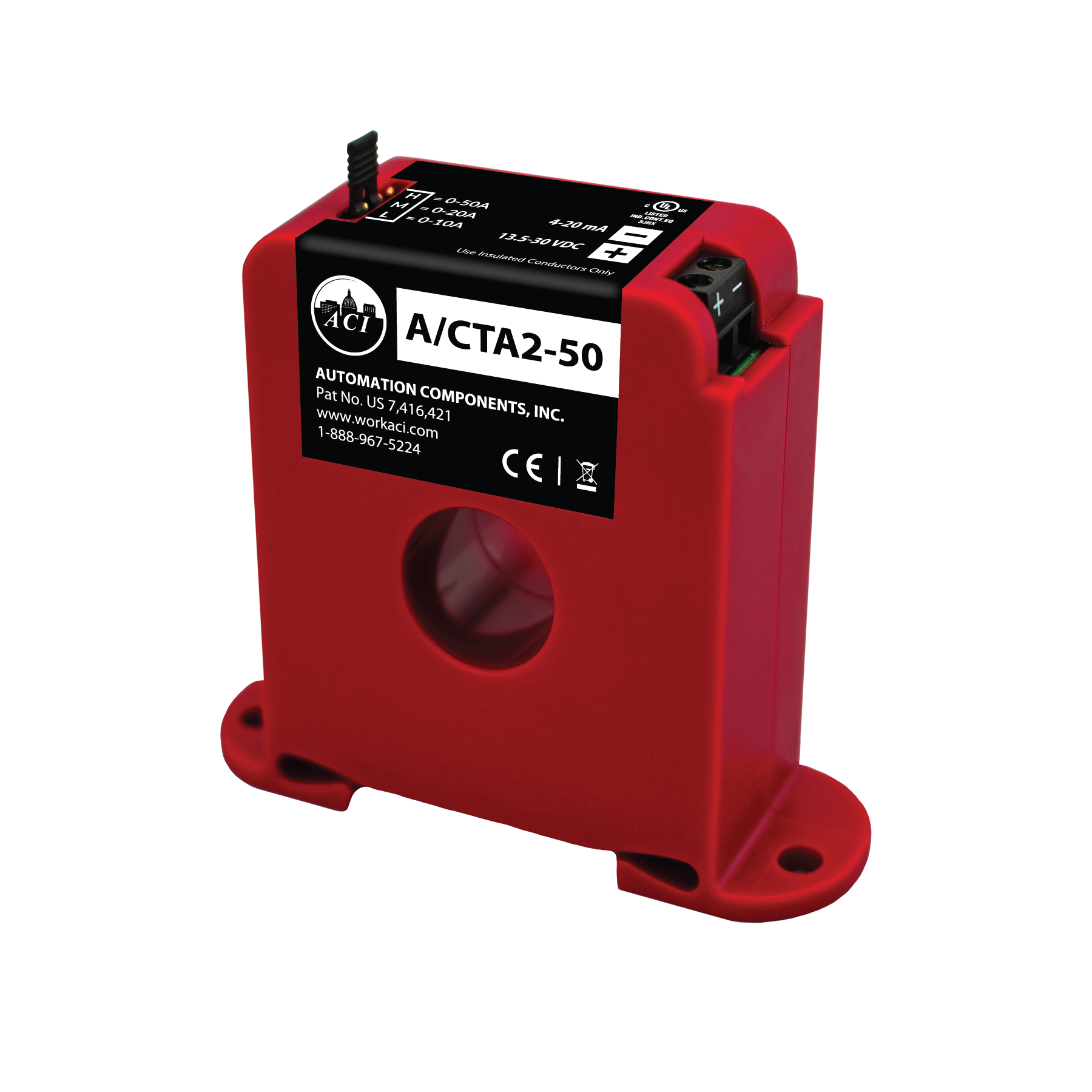

A/CTA2-50 | ACI: 4-20mA output, 0-10/0-20/0-50 Amps (OBSOLETE)

The 4-20 mA Output Analog Current Sensors were designed for use in any AC current monitoring application in which you are looking to monitor a particular piece of equipment. The “Average” style current sensors should be used in applications where the Sinusoidal waveform has no distortion or noise on the conductor being monitored. Applications may include monitoring a resistive type load such as an incandescent light bulb, heating element as well as any single speed linear load. Note that the “True RMS” sensors are able to be used in all applications since the “True RMS” current sensors provide the best overall accuracy and should be used in applications including Variable Frequency Drives, Switching Power Supplies, Computers and Data Centers, Electronic Ballasts, SCRs, and Variable Speed Loads.

For convenience in installing a complete building automation system, KMC Controls sells to our customers a large variety of ACI (Automation Components, Inc.) devices.

For full ACI product descriptions and specifications go to workaci.com and enter the part number in the Search field at the top of the page.
