A/DLP-010-W-U-N-A-0 | ACI: Differential Pressure

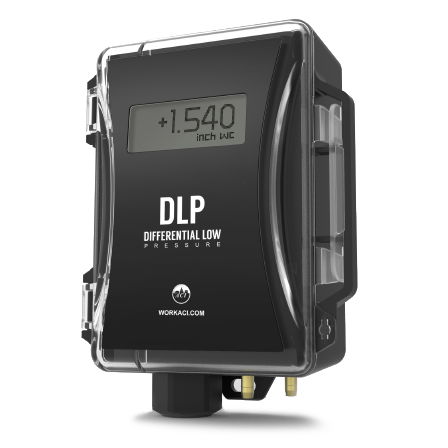

The DLP Series is based on a piezoresistive, silicon sensing element that senses Differential Pressure and provides an analog output. The hinged cover on the DLP can be easily opened using the integrated locking tab on the side of the enclosure. This allows for easy access to the zero function and ­field selectable ranges and outputs. The DLP Series also includes an optional, ­five-digit LCD for installation and monitoring support. Field selectable analog outputs include 0-5 and 0-10 VDC, or 4-20 mA. These correlate to a specifi­c uni or bi-directional pressure range from 0-0.1” up to 0-40” of water column, depending on the model selected. Each unit must be ordered with the specific pressure range needed to meet desired application requirements. Options include a Pitot Tube or DIN Rail Clip.

Applications: Building and Duct Static Pressure, Filter Monitoring, Air Flow Measurement, and Process Control

For convenience in installing a complete building automation system, KMC Controls sells to our customers a large variety of ACI (Automation Components, Inc.) devices.

For full ACI product descriptions and specifications go to workaci.com and enter the part number in the Search field at the top of the page.
