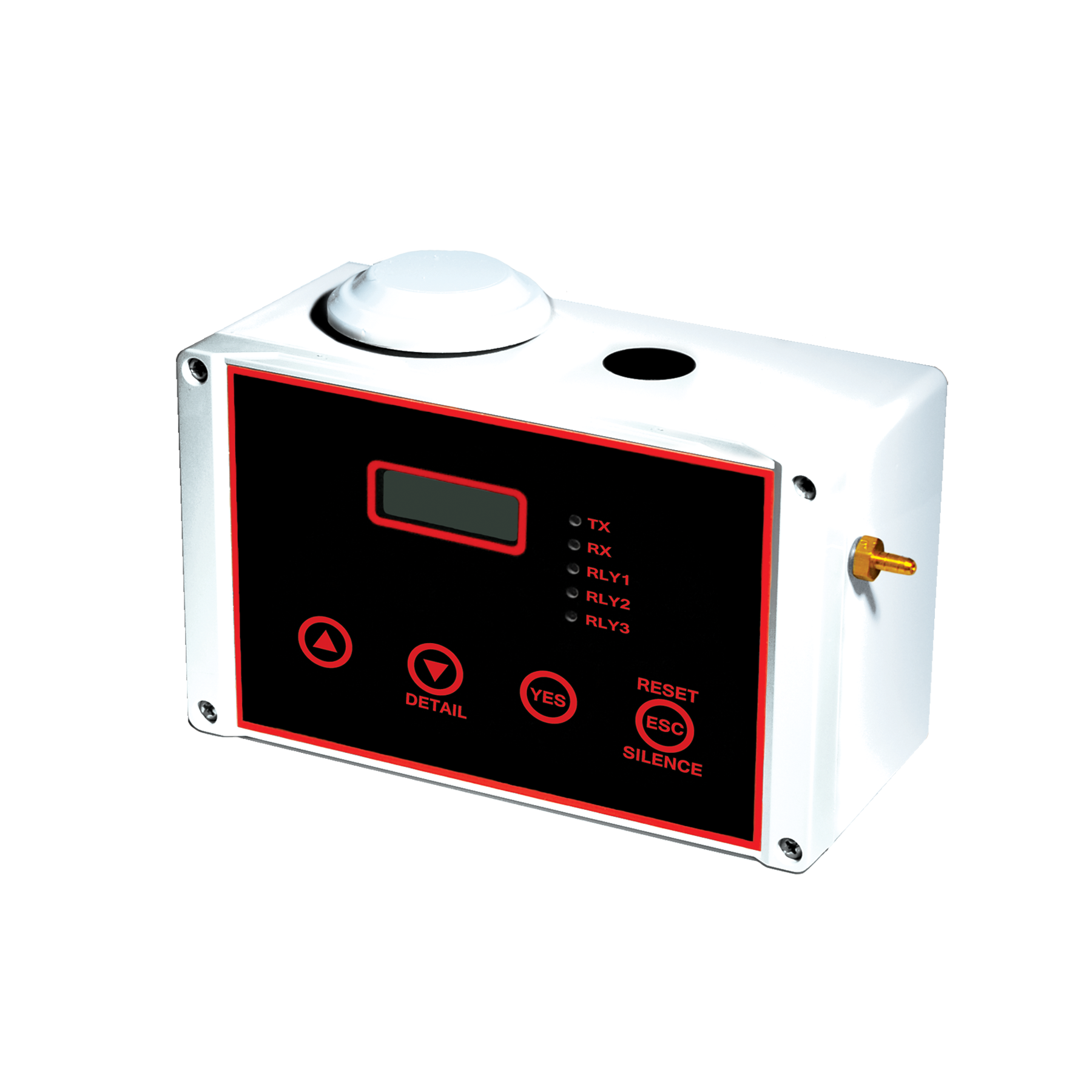

QIRF-134AX-0 | ACI: INFRARED, FREON, R134A
Sign in with a qualified account to view pricing or
learn how to buy KMC products.
OVERVIEW | ACI: INFRARED, FREON, R134A
QIRF Refrigerant Gas Detectors from ACI are the second generation of a proprietary designed gas detector that is easily configured to meet International Mechanical Code, ASHRAE 15 and B52 requirements. These transmitters are engineered to address the deficiencies inherent with solid-state sensors. Infrared technology facilitates specific gas type refrigerant detection without any cross-sensitive interferences.
Standard features include a digital display, three user configurable relays, buzzer, horn/strobe output, NEMA 4X enclosure and non-intrusive calibration. Sensor Housings are thermally controlled at elevated temperatures to eliminate errors due to condensation forming and from temperature fluctuations allowing operations in temperatures from -49 to 149ºF (-45 to 65ºC). Analog outputs of 4-20 mA and or 2-10 VDC are available along with RS-485 Communications that can be used with a Modbus RTU or proprietary OptoMux communication protocol for use with any of the standalone gas controller such as the Q4C, M-Controller or Q-Controller. A Zero gas of 20.9% Oxygen with the balance Nitrogen should be used to perform a Zero calibration while a known concentration of any span gas can be used to perform yearly bump testing and calibration. Never use 100% Nitrogen gas to perform a Zero calibration on the QIRF transmitters. Calibration gases and a 0.4 to 0.6 liter/minute flow limiting gas regulator are not available through ACI and should be purchased through your local gas supply company or on-line companies such as Portagas® (Praxair®, Inc.) or Mesa Specialty Gases®. ACI also offers a full line of horns and strobes that can be used with the Gas detectors or building management system to alert building occupants of an alarm condition in order to meet B-52 or other code requirements. Refer to all applicable Federal, State, Provincial and Local Health and Safety laws and regulations before using these products.
For convenience in installing a complete building automation system, KMC Controls sells to our customers a large variety of ACI (Automation Components, Inc.) devices.
For full ACI product descriptions and specifications go to workaci.com and enter the part number in the Search field at the top of the page.
Specifications
Brand | ACI |
---|---|
Sensor Type | Other |
