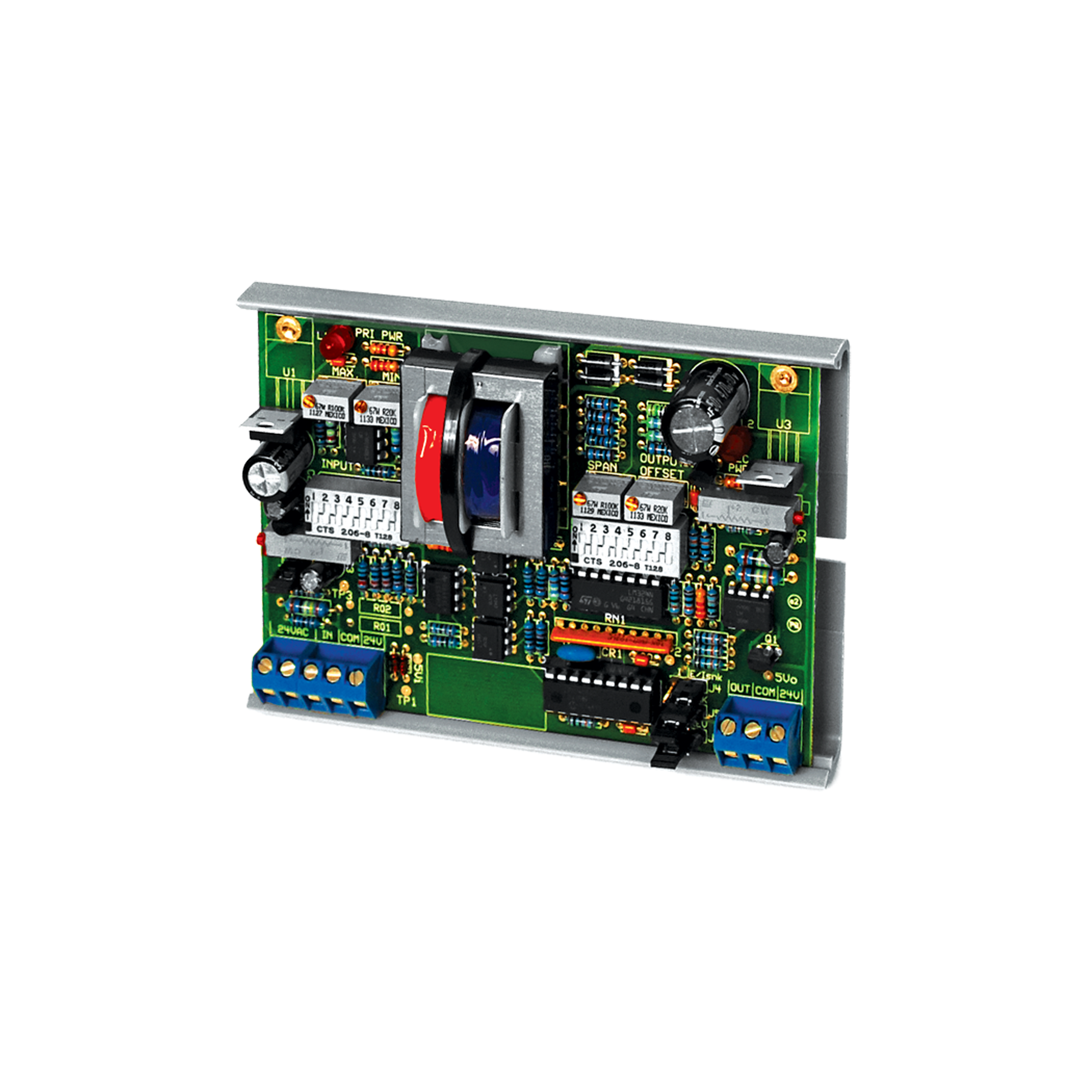

AIM2 | ACI: Rescaling Analog Isolation Module

The AIM2 optically isolates the analog (voltage or current) signal to the device being controlled. It will accept any input signals between 0 and 20 volts, or 0 and 20 mA, and output any signal within those ranges. The AIM2 has preset or adjustable inputs, and preset or adjustable outputs, that can be either voltage or current. The current signals on the input or output can be either sink or source. The AIM2 requires one external 24 VAC isolation transformer with floating secondary for power. It has an on-board 24 VAC isolation transformer to supply power to the isolated output.

Applications:

• Grounded electric actuator isolation
• Fluorescent light dimmer isolation
• Ground loop isolation

For convenience in installing a complete building automation system, KMC Controls sells to our customers a large variety of ACI (Automation Components, Inc.) devices.

For full ACI product descriptions and specifications go to workaci.com and enter the part number in the Search field at the top of the page.
