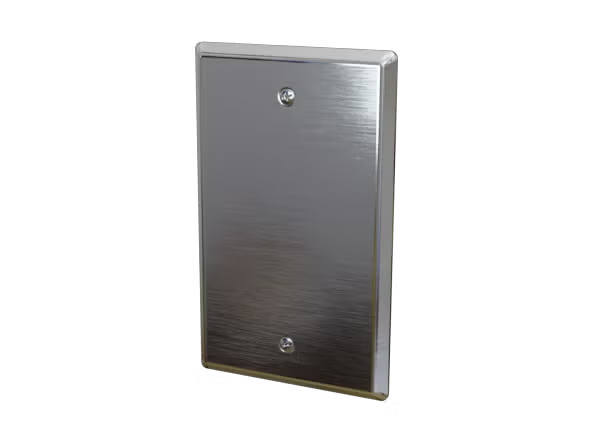

A/TT1K-SP-2 | ACI: Transmitter w/ 1K, Wall Plate, Stainless Steel, 2-10VDC Output

The ACI Transmitter Wall Plate Series features a two-wire, 4 to 20 mA loop powered output with optional 3-Wire voltage output signals available. All transmitters include Zero and Span adjustments for field calibration and are calibrated using NIST Certified Calibration equipment. The sensor assemblies are manufactured using color-etched teflon lead wires and a double encapsulation process to eliminate the effects of moisture on the sensors as well as increase the thermal response times using high quality, thermally conductive epoxy. The wall plate transmitter is designed to be mounted over a standard single gang junction box or hole in the wall and includes a foam pad to reduce the effects of self-heating from the transmitter and thermal drafts from within the wall.

For convenience in installing a complete building automation system, KMC Controls sells to our customers a large variety of ACI (Automation Components, Inc.) devices.

For full ACI product descriptions and specifications go to workaci.com and enter the part number in the Search field at the top of the page.
