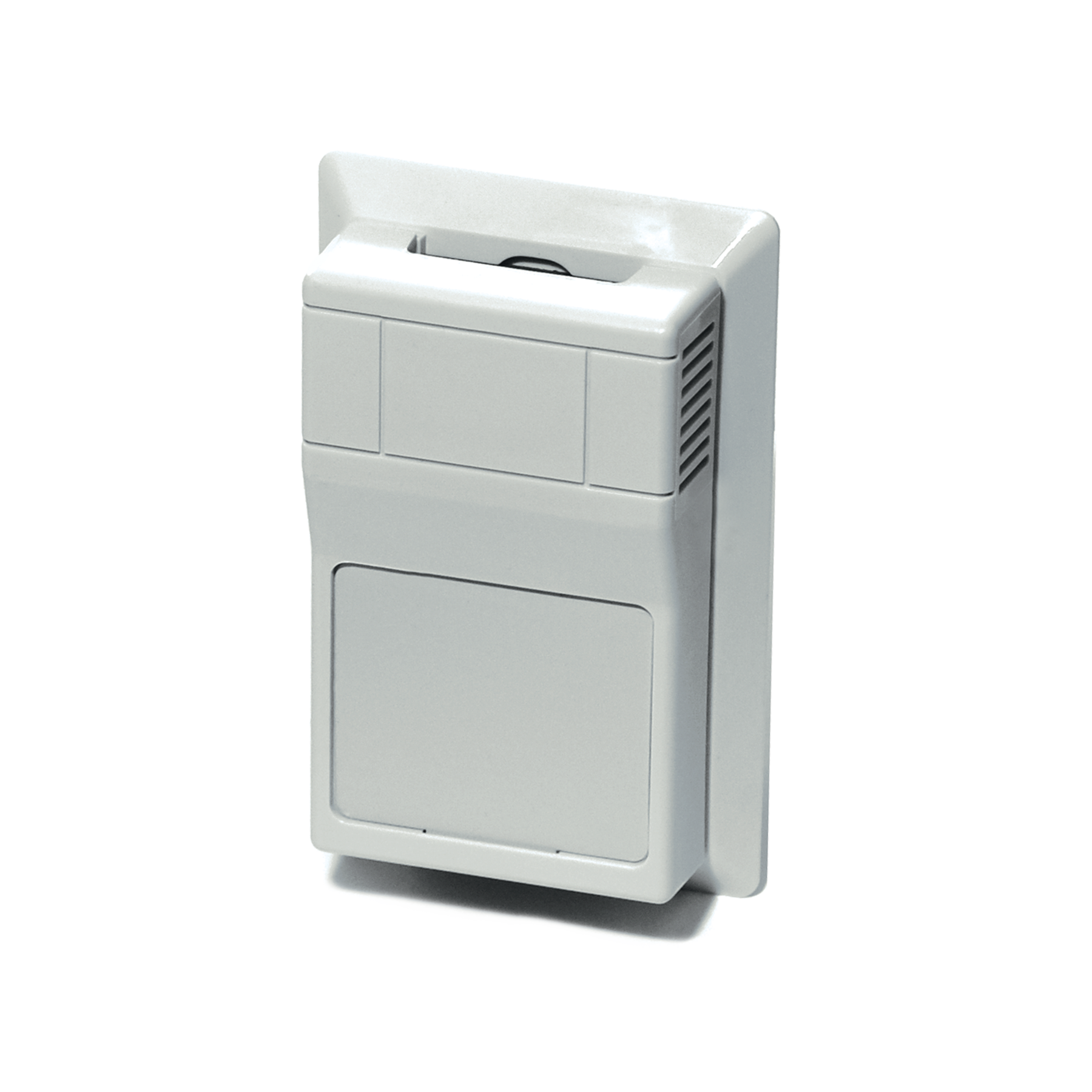

WT2630B | ACI: Wireless Wall Temp Sensor with Setpoint & Override
OVERVIEW | ACI: Wireless Wall Temp Sensor with Setpoint & Override
The WT2630 is a battery operated spread spectrum wireless room, or wall, temperature sensor or thermostat. The override button (B & C models only) located on the side of the sensor housing can be assigned to a digital output in the Series 2000 family of receivers for occupancy override or similar applications. The setpoint adjustment (B Model only) can be assigned to an analog output in the ACI MESHNET900® receiver. The output will then be used by a controller for a variety of control setpoint ranges (user defined) and other applications such as dimming of light and window blinds control. Series 2000 wireless sensors utilize reliable Spread Spectrum Radio technology. They can be installed easily in minutes eliminating hundreds of feet of wire and saving installation cost while reducing installation labor risks. The Meshnet 900® sensor Data-Link LED confirms the data transmission was received by the receiver for fast and reliable positioning of the sensor during installation. Together with the ACI Wireless receivers and controllers, the wireless sensors can be used with any LON, BacNet, MODbus, or DDC control system or panel. ACI wireless sensors and systems are designed for retrofit HVAC, Building Automation, and industrial systems. Typical applications include: churches, museums, historical sites, etc. They are also suitable for flexible office/work station lay outs, auditoriums and conference centers with movable walls, or wide open warehouse spaces.
ACI can provide additional set up support before shipping.
For convenience in installing a complete building automation system, KMC Controls sells to our customers a large variety of ACI (Automation Components, Inc.) devices.
For full ACI product descriptions and specifications go to workaci.com and enter the part number in the Search field at the top of the page.
