MCP-10401208 | Actuator: 4″x4″, Positioner, Ball Joint
OVERVIEW | Actuator: 4"x4", Positioner, Ball Joint

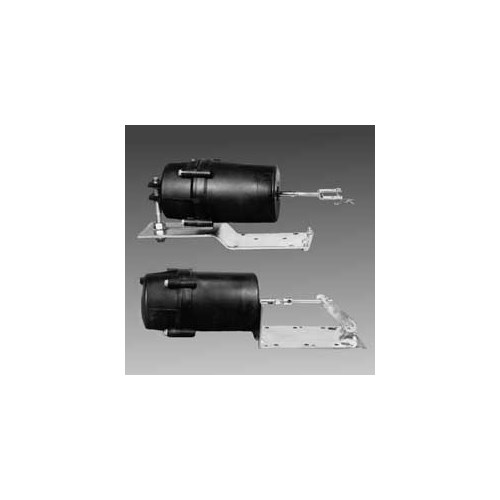

The KMC MCP-1040 and MCP-1140 Series 4 Pneumatic Damper Actuators are designed to position automatic air dampers in pneumatically controlled systems. The units may be used for gradual or two-position applications. Models are available with either post or right angle bracket mounting. Right angle models are shipped with crankarms for either 1/2″ or 3/8″ damper shafts. Either style is available with a factory mounted positive positioner. Actuators with positive positioners include an 8-13 psi internal spring and a 5 psi span spring. A 10 psi spring may be ordered separately.
Ball Joint, Positioner
|Pneumatic Actuator Size||
