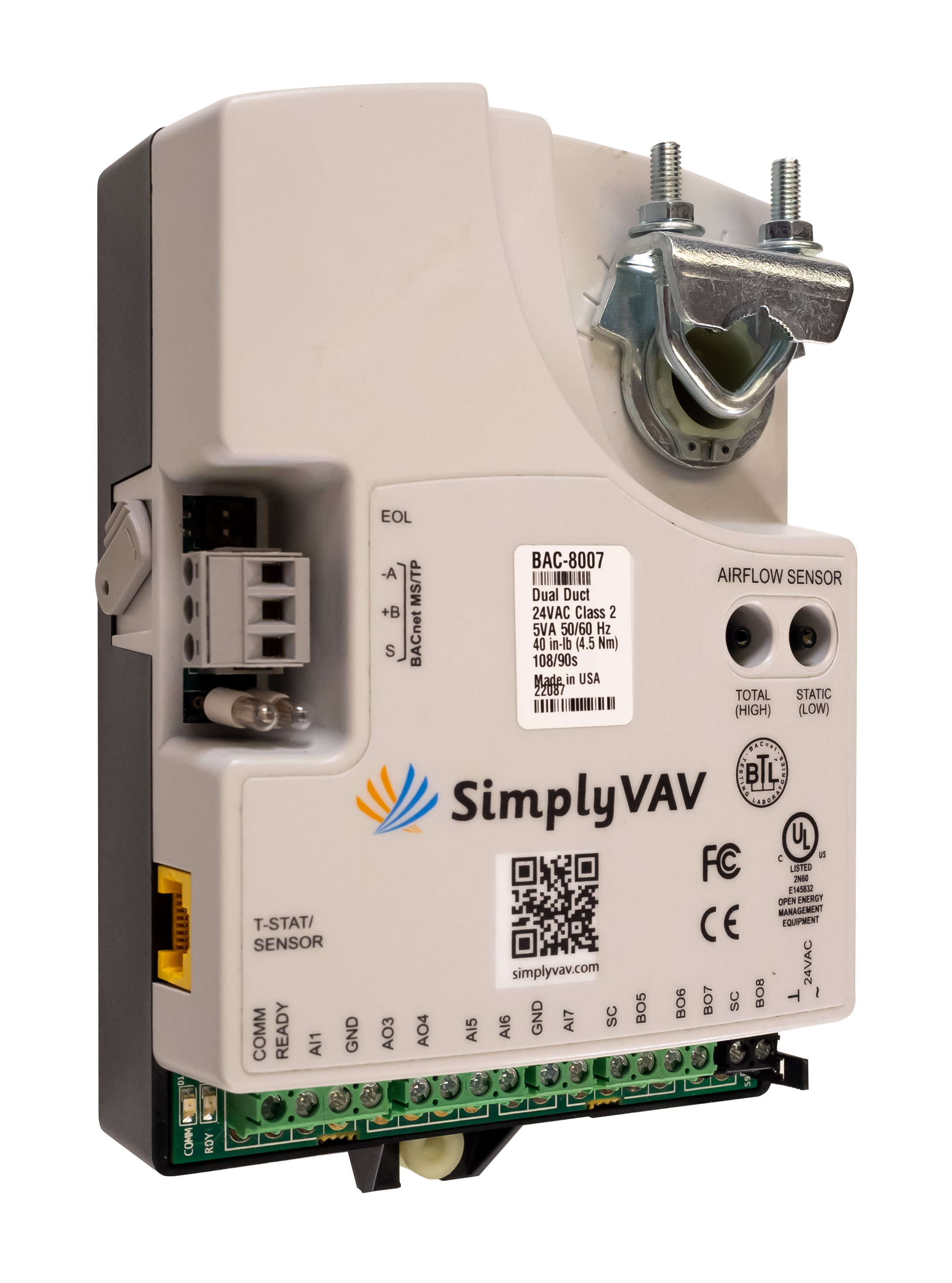

BAC-8007 | BACnet ASC: SimplyVAV, Dual Duct, 40 in-lbs, 90 sec.
OVERVIEW | BACnet ASC: SimplyVAV, Dual Duct, 40 in-lbs, 90 sec.
The SimplyVAV series of controllers are an easy and unique approach to operating a wide variety of VAV terminal units. The integrated actuators, internal airflow sensors, and wide variety of application programs make these BACnet Application Specific controllers ideal for either new or retrofit installations.
Model BAC-8007 is supplied with inputs, outputs, and sequences of operation for the following functions.
- Dual-duct VAV heating and cooling
- Occupancy setback—requires STE-8201
- System diagnostic indicators
- Airflow balancing
- Uses TSP-8001 for secondary damper control
- A 90-second actuator
For control of the RTU, HPU, or other unitary equipment in zoning applications, see the BAC-120063CW-ZEC FlexStat Zoning Equipment Controller.
