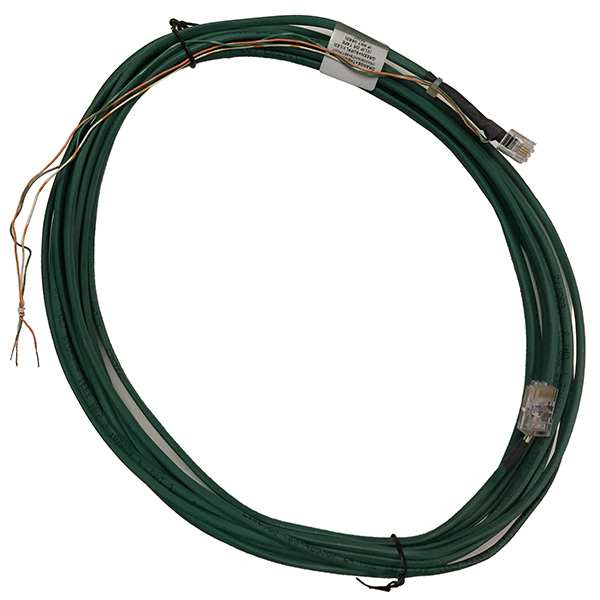

KMD-5693 | Cable: RJ-11 to RJ-45, 25′, for STE-601x and BAC-58×1/7xxx

For STE-6010, STE-6014, STE-6015, STE-6016, STE-6017, or STE-6018 room temperature sensors with modular jacks and KMC legacy BAC-58×1 and BAC-7xxx BACnet controllers. These plenum-rated cable lengths are available:

• KMD-5693 = 25 feet
• KMD-5694 = 50 feet
• KMD-5695 = 75 feet

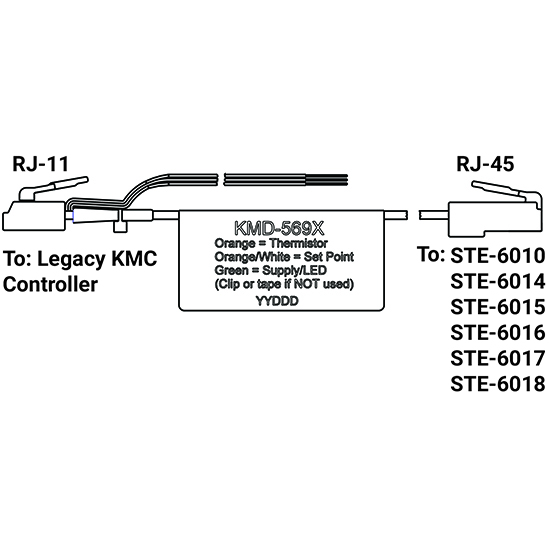

The additional wire connections to the BAC-58×1 and BAC-7xxx controller are:

• Orange is the thermistor signal to the controller’s appropriate input on the terminal block
• Orange/white is the setpoint (10K pot or 0-5 VDC) signal (clip or tape if unused)
• Green is the optional 7.5/10/12 VDC supply voltage from an output of a controller to power the LCD display or LED indicator (clip or tape if unused)

NOTE: This cable is not used with KMC Conquest BAC-59xx and BAC-9xxx controllers, which use standard Ethernet patch cables for the Room Sensor port–see HSO-9001 (50 feet), HSO-9011 (50 feet, plenum-rated), or HSO-9012 (75 feet, plenum-rated).
