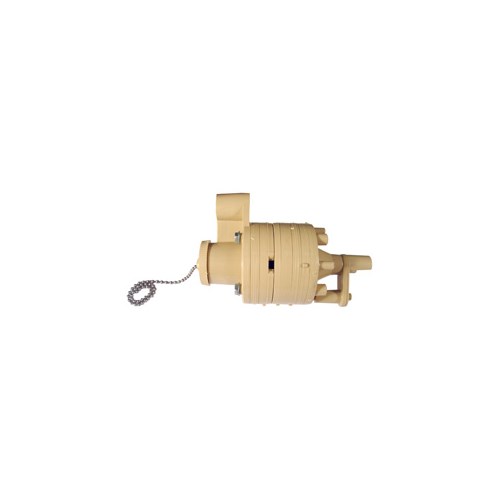

CMC-1001 | Controller: Positioner, Plastic

The KMC CMC-1001 non-metallic positive positioner is designed to work with KMC pneumatic damper actuators. CMC-1001s can be factory-mounted or field-installed on 3″, 4″, or 6″ stroke actuators.

The CMC-1001 is designed to be used with actuators containing an 8 to 13 psi spring so that equal force can be obtained on both power and return strokes. The CMC-1001 replaces positioners on any MCP actuator with the digit 1 in the fifth position (MCP-xxxx-1xxx).

The start-point is adjustable from 3 to 10 psi. The overall span is a direct function of the selected feedback spring, which is ordered separately (see Accessories section).

NOTE: For all 3″ and 4″ actuators, insert the (included) VTD-2500 restrictor in the line between Port #1 and the actuator. The restrictor is not needed on 6″ actuators.
