KMN-J-9100 | Niagara: KMC JACE-9000, 100 Device/5,000 Point Limit, No WLAN

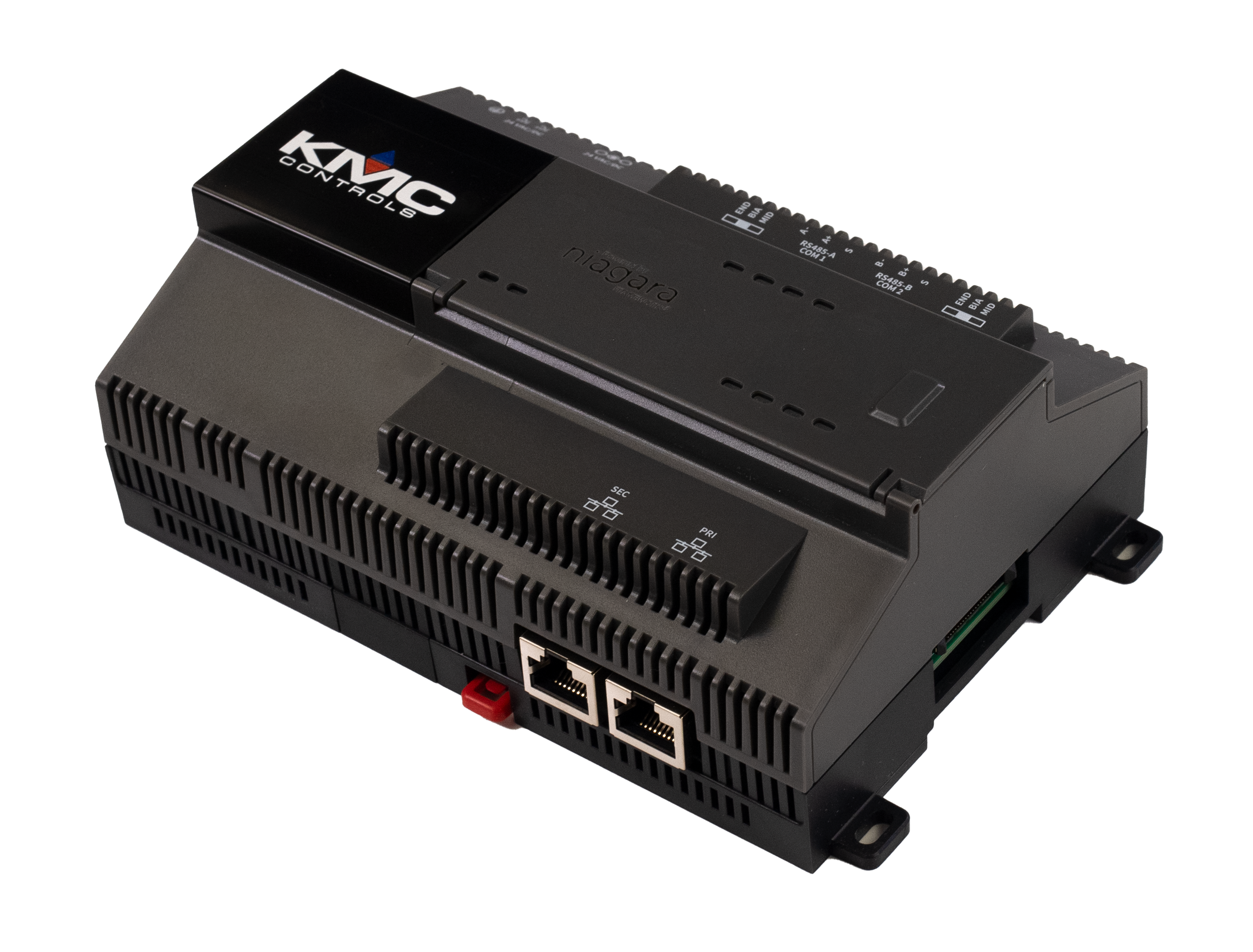

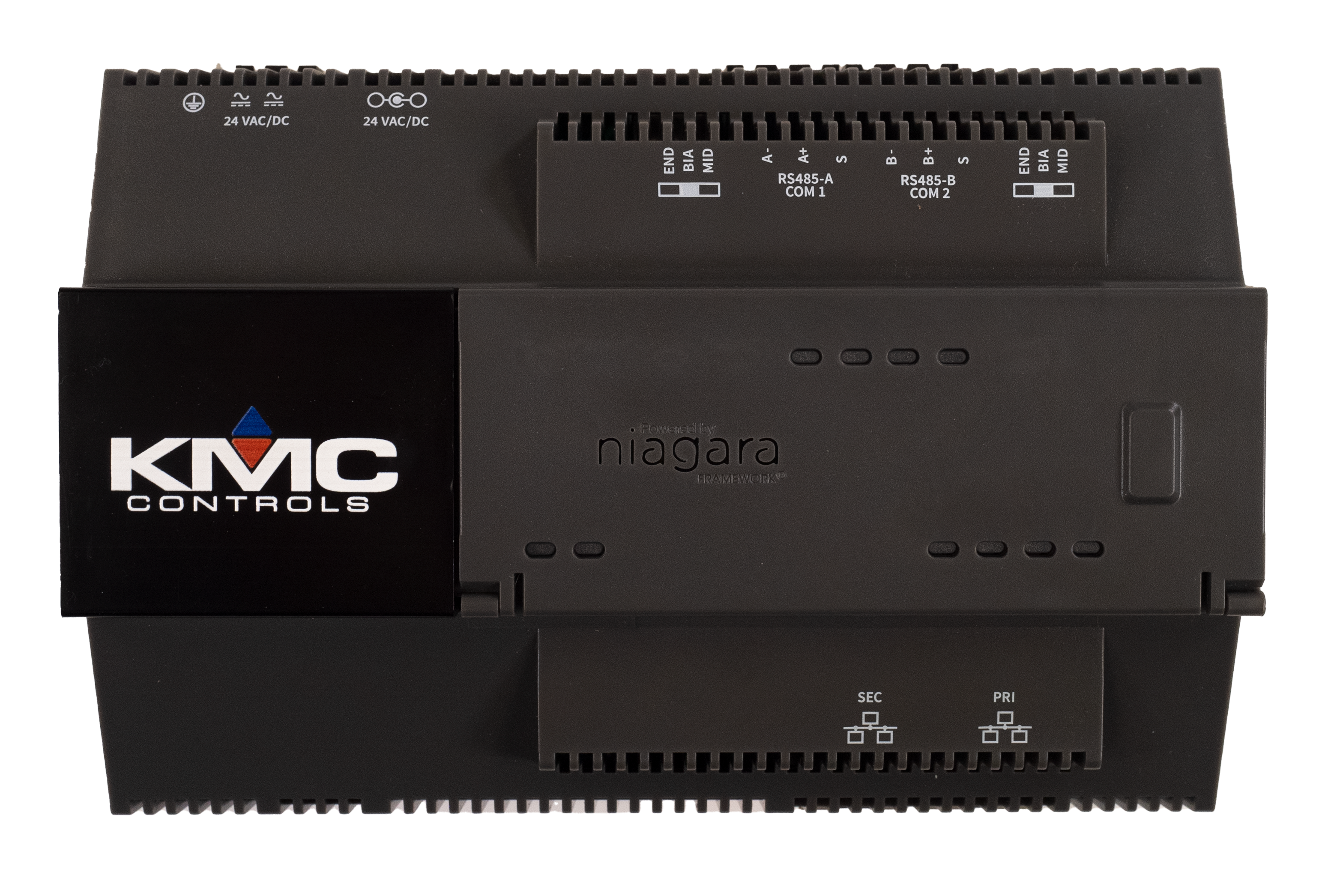

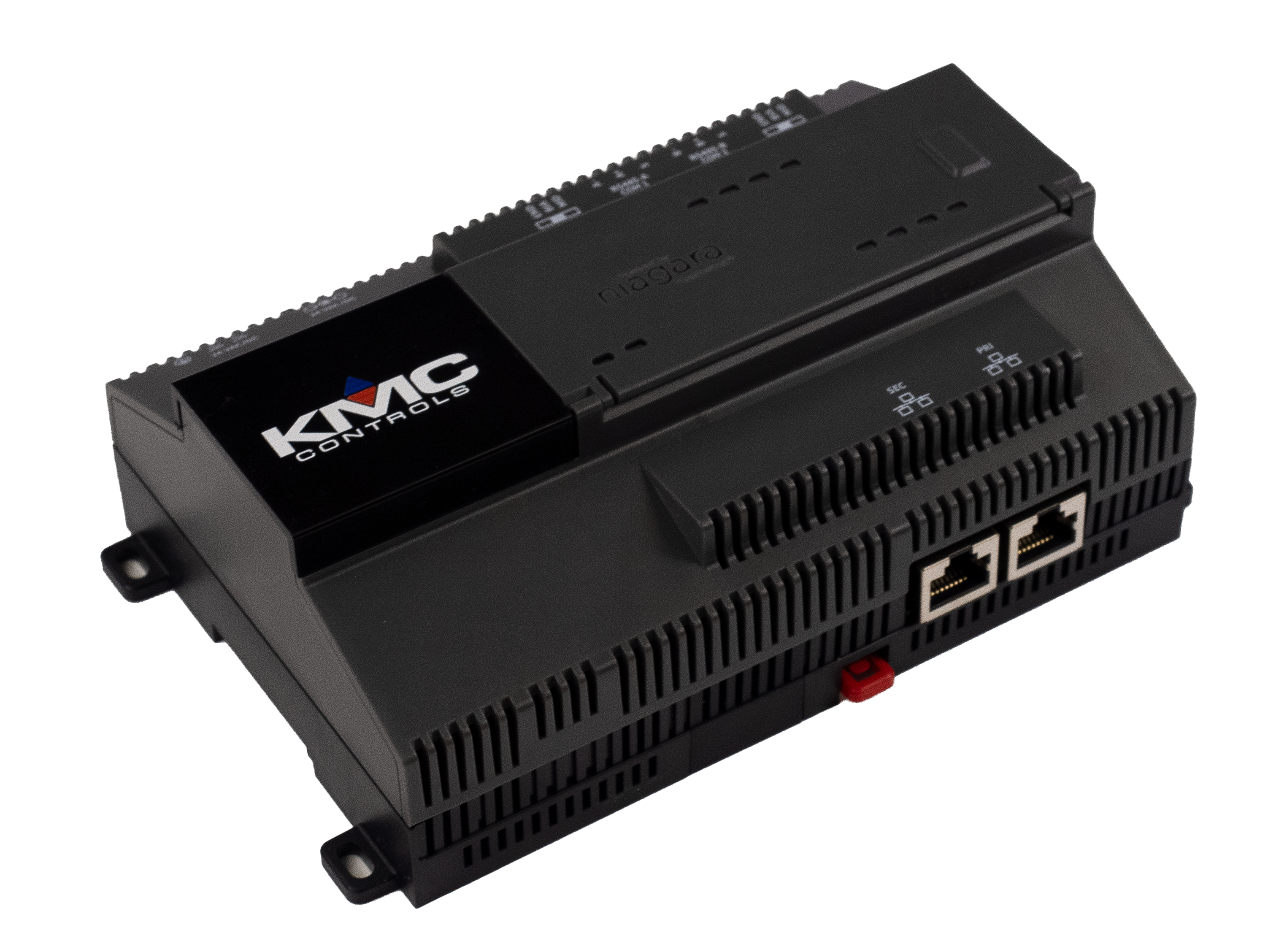

The KMN-J-9100 is a compact, embedded Niagara Framework-based controller and server platform for connecting multiple and diverse devices and sub-systems.

The controller is designed as a Network Automation Controller optimized for BAS applications. With Internet connectivity and web-serving capability, the JACE 9000 controller provides integrated control, supervision, data logging, alarming, scheduling, and network management. It streams data and rich graphical displays to a standard Web browser via an Ethernet connection or remotely over the Internet.

The controller is optimized for Niagara 4, which takes the Internet of Things “defense-in-depth” approach to security. In larger facilities, multi-building applications, and large-scale control system integrations, Niagara 4 Supervisors can be used with JACE 9000 controllers to aggregate information, including real-time data, history, and alarms, to create a single, unified application.
