STE-6013-10 | Sensor: Room Temp, LED, Override, Almond
OVERVIEW | Sensor: Room Temp, LED, Override, Almond

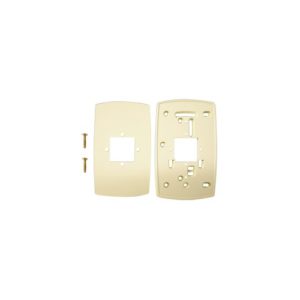

These compact, stylish, and economical room temperature sensors are designed for use with KMC digital controllers. They incorporate a 10,000 ohm (@ 77° F) thermistor for precise, stable temperature sensing. The durable, low-profile, thermostat-style cover is visually appealing. These sensors may be surface mounted on a hollow wall or (using an HMO-6036 universal backplate) to a 2 x 4 in. electrical box.
STE-6013 models include a button and LED. Pushing the button on the front allows selection of an override condition. A green status LED can illuminate according to the user-defined controller configuration (e.g., during setback/setup or during normal/override modes).
APPLICATION GUIDE, Room Sensor and Thermostat Mounting and Maintenance (Updated: 2021-02-22) [Rev. F]Digital Designer's Guide (Collection of Misc. Application Notes) (Updated: 2010-04-16) [Rev. B]STE-6010/6011/6013/6015 Temp. Sensors Application Guide (Updated: 2020-12-01) [Rev. D]
KMC Product Overview Brochure (Updated: 2018-05-01) [Rev. May 2018]KMC Sensors Brochure (SB-057) (Updated: 2019-05-14)
