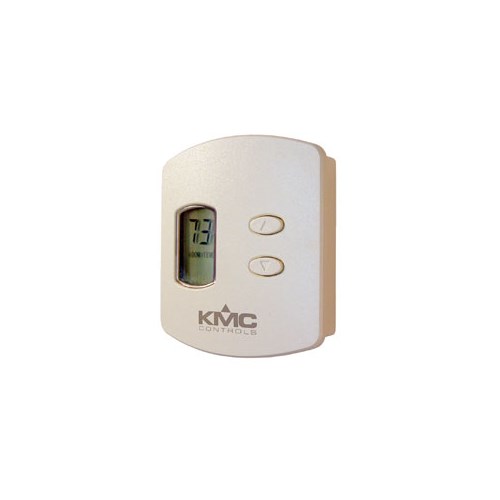

STE-6016-10 | Sensor: Room Temp, Setpoint, LCD, Modular, Almond
OVERVIEW | Sensor: Room Temp, Setpoint, LCD, Modular, Almond
These compact, stylish, and economical room temperature sensors/transmitters are designed for use with KMC digital controllers. They incorporate a 10,000 ohm (@ 77° F) thermistor for precise, stable temperature sensing. The durable, low-profile, thermostat-style cover is visually appealing. These sensors may be surface mounted on a hollow wall or (using an HMO-6036 universal backplate) to a 2 x 4 in. electrical box.
STE-6016 model transmitters include an LCD display for the room temperature and setpoint. The temperature display can be toggled between Fahrenheit and Celsius scales. The setpoint is adjustable via the up and down arrow buttons on the front panel. If the system is in normal/override mode, pressing a button will raise or lower the setpoint. When either button is pushed, the display will toggle from room temperature to the setpoint. When the button is released, the number displayed is the new setpoint, and the display will return to room temperature after ten seconds. If the system is in setback/setup (for heating/cooling) mode, pressing either button selects override mode. (See Power Requirements in the Specifications section of the data sheet.)
They have an RJ-45 modular jack for quick connections. For connecting to KMC KMDigital controllers and KMC legacy BAC-58×1 and BAC-7xxx BACnet controllers, use a (custom) KMD-5693 (25 feet), KMD-5694 (50 feet), or KMD-5695 (75 feet) cable.
A four-pin EIA-485 (formerly RS-485) data port on the cover’s underside provides an easy temporary computer connection to the network, using a:
- BAC-5051E router and HPO-5551 router technicians cable for BACnet networks.
- KMD-5576 USB-to-485 converter for KMDigital networks.
NOTE: They are not compatible with KMC Conquest BAC-59xx and BAC-9xxx controllers. See the STE-6010/6014/6017 modular models or STE-6012 terminal models instead.
