VEB-4606HBCK | Valve: 1-1/2″ 3W NPT, 61.1 CV, Proportional, Non-Failsafe
OVERVIEW | Valve: 1-1/2" 3W NPT, 61.1 CV, Proportional, Non-Failsafe
VEB-46 (formerly VEP-43) series, 3-way, mixing or diverting, NPT control ball valves are designed for the control of hot or chilled water in HVAC applications. Valves range in size from 1/2 to 3 inches and most feature an optimizing insert, which reduces and characterizes the ball opening for lower Cv ratings similar to globe valves.
The body design also provides a standard “T” pattern to simplify installation. They include a field-repairable blowout-proof stem and leak-proof shut-off. The reduced torque seals and O-rings eliminate the need for high torque actuators and are designed to work with KMC’s low-torque, MEP-4xxxV series actuators on all valve sizes.

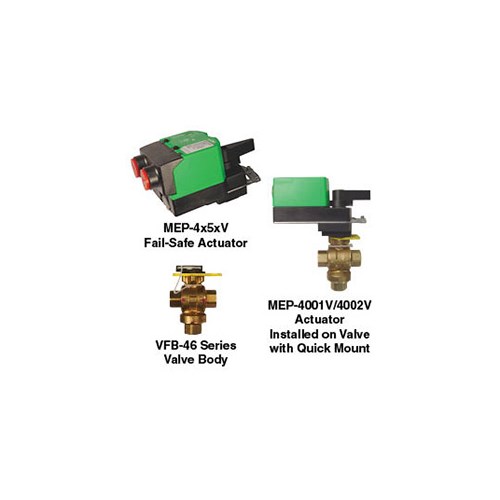

Valve assemblies have brackets with a patented, quick-mounting mechanism that creates a universal connection to VSI, Griswold, and other valve bodies. Complete valve assemblies are available with MEP-4002V/4252V/4552V actuators. Order other actuators and valve bodies separately.
0-10 VDC, 2-10 VDC
Fail In Place
Valve And Actuator
|Valve Piping Style||
ControlSet Actuators Brochure (SB-009) (Updated: 2019-05-14)
- Data Sheets
HPO-5074 Quick-Mount Valve Adapter Installation Guide (Updated: 2020-06-03) [Rev. C]VEB-46/VEP-43 Series 3-Way, NPT, BALL Control Valves Installation Guide (Updated: 2021-04-28) [Rev. I]
