The Science of Measuring Indoor Airflow (And Why It Matters)

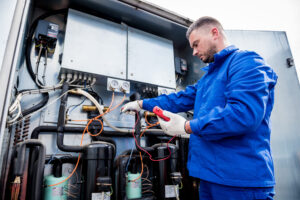

Resistance test of temperature sensors in the cooling supply section of the ventilation unit.

When managing a building, have you ever wondered, “How do I know the air is moving like it should be?” This might not be the first question that comes to mind for most Facility Managers or Technicians, but it’s a crucial one. Proper airflow impacts everything from indoor comfort to energy efficiency and even the building’s overall health. Without accurate airflow measurement, you not only sacrifice performance but risk compromised Indoor Air Quality (IAQ), higher costs, and unhappy occupants.

What is Airflow Measurement and Why is it Crucial?

Airflow measurement refers to the process of tracking and quantifying the movement of air within a space. This is not just about knowing if your HVAC is working; it’s about ensuring balanced ventilation, maintaining indoor air quality, and achieving energy efficiency.

The Consequences of Poor Airflow:

  • Sick Building Syndrome (SBS): Poor airflow contributes to SBS, leaving occupants with headaches, fatigue, or respiratory issues.
  • Energy Waste: Inefficient airflow makes your HVAC systems work harder, leading to energy and cost spikes.
  • Discomfort: Imbalanced airflow creates uneven heating or cooling, leaving occupants too hot, too cold, or just plain annoyed.

Measuring airflow keeps all these issues at bay, ensuring that your indoor environments are healthy, comfortable, and sustainable.

What Units and Instruments Measure Airflow?

To understand airflow, it starts with knowing how to measure it.

What Is Airflow Measured In?

Typically, airflow is measured in cubic feet per minute (CFM). This represents the volume of air moving through a duct, vent, or space every minute. You might also come across liters per second (LPS) for velocity or cubic meters per hour (nm³/hr) in some industries. Measurement frequently combines these units with pressure readings inside the ducts.

Common Airflow Measurement Tools

  • Anemometers or Airflow Meters: Measure flow rates directly, with options for digital or manual readings.
  • Blower Probes: Practical tools for volume and velocity checks in ducts.
  • Differential Pressure Gauges: Measure pressure drops across orifices.
  • Thermal Dispersion Sensors: Ideal for low-velocity environments (but prone to dust and accuracy drift).
  • KMC AFMS with Characterized Airflow Performance®: This approach combines inclinometers, damper performance curves, and algorithms for next-level precision.

With so many tools available, choosing the right one depends on your specific needs and system setup.



How KMC AFMS Revolutionizes Airflow Measurement

If you’re looking for a smarter, simpler solution, the KMC AFMS takes the guesswork out of airflow monitoring. It’s the ultimate tool for facility managers and technicians delivering precision, efficiency, and peace of mind.

Here’s How It Works

  1. Learn Mode Calibration: A short calibration period automatically adjusts airflow monitoring to real-world conditions, accounting for duct bends, obstructions, and ambient weather.
  2. Real-Time Monitoring & Adjustments: Integrated into your Building Automation System (BAS) via BACnet, the AFMS ensures your system operates exactly as it should 24/7.
  3. Automatic Recalibration: Over time, mechanical wear impacts airflow, but the AFMS’s automatic recalibration keeps everything accurate without manual intervention.

Top Features of the KMC AFMS

  • Accuracy Under Any Condition: Impervious to wind gusts, low velocities, and contaminants like dirt or pollen.
  • Cost-Efficiency: Delivers better performance than traditional multi-device setups and lowers installation costs.
  • Energy Efficiency: Supports sustainable HVAC solutions by optimizing ventilation and reducing power waste.
  • Advanced Fault Detection and Diagnostics (AFDD): Identifies system faults like damper blade failure before they become big issues.

Applications That Matter

The KMC AFMS has been implemented in schools, healthcare facilities, and businesses across the nation. For example:

  • Denver Public Schools: Enhanced IAQ and reduced maintenance headaches while meeting ASHRAE standards.
  • Children’s Minnesota Hospital: Balanced pressurization challenges solved with reliable airflow monitoring.

Both case studies demonstrate real-world cost savings and performance improvements through proactive airflow management.

Key Benefits of Optimized Airflow Management

  • Energy Savings: Reduce waste by maintaining balanced HVAC airflow.
  • Improved IAQ: Cleaner air is linked to increases in productivity and reduced occurrences of SBS.
  • Regulatory Compliance: Stay ahead of IAQ certifications like WELL or RESET.
  • Sustainability: Lower energy usage aligns with green building initiatives.
  • Peace of Mind: With KMC AFMS, your building operates as smoothly as possible.

Level Up Your Airflow Management Today

Want to avoid the costly pitfalls of unoptimized HVAC systems? Looking to improve indoor air quality and deliver sustainable solutions without overhauling your entire system? Start by looking into the KMC AFMS.

Whether you’re a facility manager, technician, or building owner, the KMC AFMS empowers you to monitor airflow, enhance efficiency, and sustain cleaner, healthier buildings.

Visit KMC Controls to learn more or contact our team to discuss tailored solutions for your facility. It’s time to breathe easier and manage smarter.

Get ahead with KMC AFMS—today’s tool for tomorrow’s sustainable buildings!



References:

Indoor Air Quality | US EPA

ANSI/ASHRAE Addendum p to ANSI/ASHRAE Standard 62.1-2013
