HCO-1102 | Enclosure: Metal, 10″ x 7″ x 2-1/8″
Enclosure: Metal, 10" x 7" x 2-1/8"
OVERVIEW | Enclosure: Metal, 10" x 7" x 2-1/8"

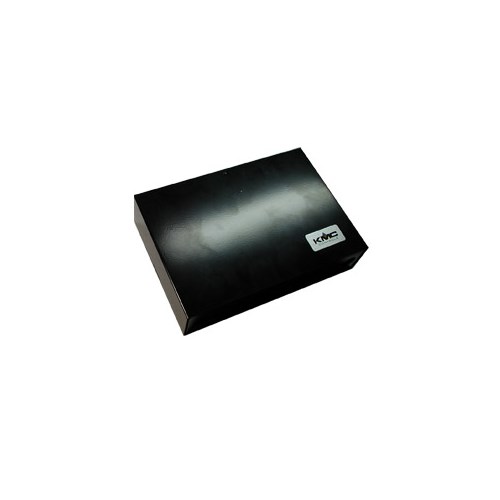

The HCO-1102 is an economical two-part enclosure that can contain a variety of different control or other devices.
- Made of 18-gauge (base) and 22-gauge (cover) steel
- Black electrocoated finish
- 10.1 W x 2.4 H x 7.1″ D (257 x 62 x 181 mm)
- Screw bosses provided for mounting one of any of the KMD-5801/5802 controllers, KMD-7300/7400 series controllers, BAC-5801/5802 controllers, BAC-7300/7400 series controllers, or KMD-5540 series CommTalk protocol interfaces*
- Optional black HMO-1102 perforated sub-panel mounts on screw bosses and allows other devices (with different mounting holes) to be installed in the enclosure
*NOTE: For Conquest BAC-5900 and BAC-9300 series controllers, see the HCO-1103 with integrated DIN rail for more convenient mounting.
